Flip Oled Review 2023 of the ASUS Zenbook 14 Flip OLED laptop based on the Intel Core i7-1165G7 processor and Iris Xe Graphics integrated graphics

Contents show

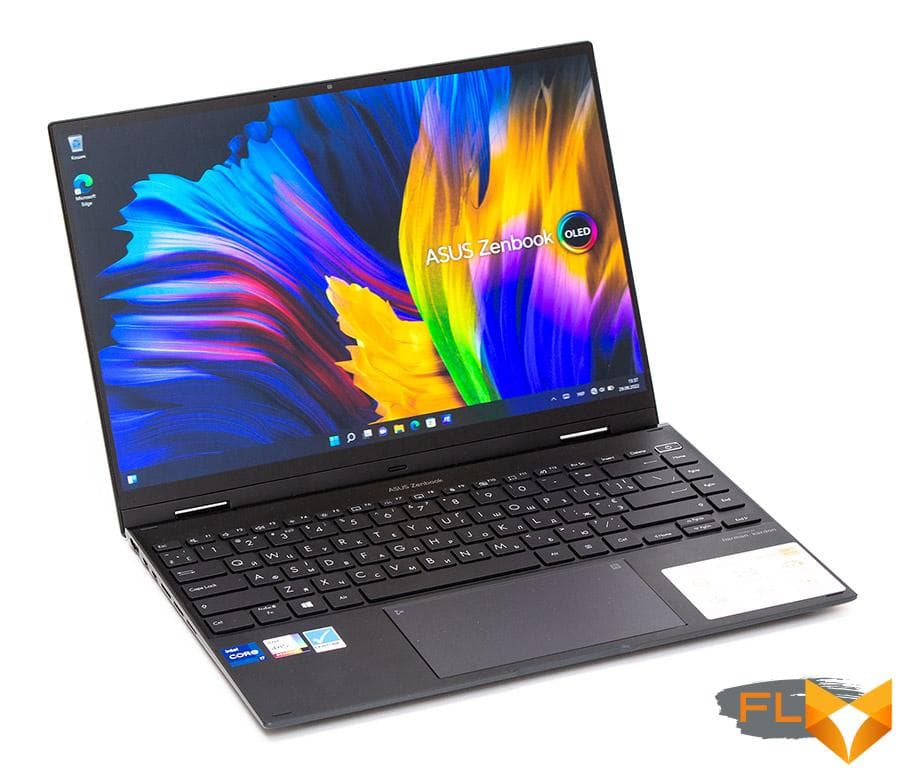

The ASUS Zenbook 14 Flip OLED line of laptops with tablet mode support is aimed at everyday use and representatives of creative professions such as designers and artists. First of all, thanks to the presence of a successful OLED touch screen and a stylus included. The instance that came to our review is labeled UP5401EA-KN094W and is based on an Intel Core i7-1165G7 processor from the Tiger Lake U family with Willow Cove architecture. This is an energy-efficient model that has four physical cores and eight threads capable of operating at maximum frequencies from 2.8 to 4.7 GHz, depending on the load on the cores and the thermal package. The integrated graphics chip Intel Iris Xe Graphics, if necessary, allows you to play simple projects at low or medium graphics settings. Although the main purpose of this graphics is hardware acceleration of work applications and programs.

ASUS Zenbook 14 Flip OLED has dimensions of 311x223x15.9 mm (excluding rubber feet) and weighs 1.4 kg. Due to the strong metal case, light weight and modest dimensions, it is completely suitable for constant carrying with you. All the main characteristics of the device are shown in the table below.

Model	ASUS Zenbook 14 Flip OLED (UP5401EA-KN094W)	Product page	Zenbook 14 Flip OLED	Processor	Intel Core i7-1165G7 1.2-2.8GHz (up to 4.7GHz Boost)	RAM	16GB LPDDR4X-4266MHz	Display	14″, 2880×1800, Samsung ATNA40YK04-0 (90Hz), OLED, touchscreen	Video card	Intel Iris Xe Graphics G7 96EU	Drives	1TB SSD NVMe M.2 (2280) SAMSUNG PM9A1 (MZVL21T0HCLR-00B00)	External ports	2 x Thunderbolt 4 USB Type-C, 1 x USB 3.2 Gen2 Type A, 1 x HDMI 2.0b, 1 x MicroSD card reader, 1 x 3.5mm headphone combo audio-out< /td>	Communications	Wi-Fi 6 (802.11AX), Bluetooth 5.0	Multimedia	HD (720p) webcam, stereo system and pair of microphones with Harman Kardon certification and AI noise reduction	Security	Start button fingerprint sensor, TPM 2.0	Battery, mAh	5427-5260 (63Wh, 3 cells, Li-ion, polymer)	Power adapter W	100	Dimensions, mm	311 x 223 x 15.9	Weight, kg	1,4	Operating system	Windows 11 Home	Cost	$1600

Delivery set

The laptop comes in a nice gray box with a carrying handle that will keep the box from opening if the packing seal is broken. On the side and back of the package are stickers with serial numbers and a list of the main technical characteristics of the product.

The laptop is originally packaged in such a way that when the box is opened, it seems to slide out and rise out of it by itself. The cover for the device is hidden behind the top lining of the box, everything else is in the bottom and side of the box.

The device comes with a case, a power supply and a power cable for it, an adapter from a USB port to RJ45 for connecting a wired network, a stylus and various documentation.

The A20-100P1A power supply can deliver up to 100 W of power and has dimensions of 75x75x29 mm. The length of the fixed USB Type-C cable is 1.5 meters. A separate power wire with a Euro plug has a length of 0.8 meters.

Appearance

The ASUS Zenbook 14 Flip OLED has a gray body and is made of durable and lightweight aluminum alloy. It copes well with the load of diagonal twisting, even with the screen raised. To emphasize the overall endurance of the laptop, the manufacturer declares compliance with the military standard MIL-STD810H. The top panel of the display contains the ASUS logo, shifted to the right side. Imperceptible to the touch “waves” of grinding diverge from it in concentric circles. The surface collects dust and fingerprints well, so it will need to be wiped down quite often. On the inside of the ErgoLift hinges there are technological outgrowths on which the lid rests at large tilt angles.

The leather case is made in the style of an envelope. On the front side, you can see the embossed Zenbook inscription. The folding part is held on a magnet, and inside there is an extension fastener for the stylus on the fold.

The bottom panel of the laptop has slanted edges on the sides and front. Speaker holes are located closer to the front, and the outlet grilles of the ventilation system are located on the back on the sides. The bottom is flat, with four rubber feet at the corners and ventilation intakes towards the back of the case.

At the back, between the reinforced 360-degree hinges, there is another ventilation grille.

A recess in the middle of the front bottom edge allows you to lift the lid, but it will not work to open it completely with one hand, since four magnets hold it closed. Probably, this is done so that the laptop does not accidentally open in tablet mode.

On the left side, there are built-in HDMI ports and two USB Type-C with Thunderbolt 4, which can be used, among other things, to charge the device. In the middle there are three narrowed slots designed to improve ventilation.

</ div>
On the right side there is one USB 3.2 Gen 2 Type-A port, a combined 3.5mm headset output, three more ventilation holes, a microSD card reader, dot indicators for device activity and battery charge.

</ div>
The USB to RJ45 adapter looks too big and inflexible. The network activity indicator is built into it at the cable entry. But the main problem is the completely glossy body, which instantly collects all the dust and fingerprints.

This is what the laptop looks like with the adapter connected:

A nice accessory of this model is the branded stylus Asus Pen SA201H. It is made in a metal case with a plastic cover on the back and has dimensions of 150×9.5 mm and weighs 20 grams. Works on MPP 2.0 technology, distinguishes 4096 degrees of depression in the force range from 14 to 450 grams, taking into account the angle of inclination up to 45 degrees inclusive. They can “draw” lines with a minimum thickness of up to 0.2 mm. There are two mechanical buttons on the front of the swing. The lower one is responsible for “erasing”, the upper one performs the function of the right mouse button. It is powered by an unusual AAAA battery, which should be enough for about a year of operation. Theoretically, you can find and order replacement rods for it.

ASUS Zenbook 14 Flip OLED has several modes of operation depending on the angle of the display. Up to 180 degrees inclusive works like a regular laptop. When tilted more than 110 degrees from the horizontal, the lower part rises, leaning on the screen stands. The technology is called ErgoLift, which improves cooling and creates a richer sound by forming a “chamber” relative to the table surface.

The display bezels are quite narrow and aesthetic – only 4.3 mm on the sides and 5.8 mm at the top. At the top center is a webcam window, and on the sides of it are two microphones.

Up to 180 degrees or more, special reinforced hinges allow the laptop to unfold. The manufacturer guarantees for them up to 20 thousand opening and closing cycles without damage.

Between 180 and 360 degrees, the system should go into tablet mode and “flip” the screen to match the tilt, but this doesn’t happen in Windows 11. In general, in this operating system, “tablet mode” is a separate topic for conversation. Therefore, it is unlikely that in the “tent” option it will be possible to fully use the laptop.

When you switch to full-fledged tablet mode, the keyboard and touchpad are automatically disabled.

I personally really liked the ASUS Zenbook 14 Flip OLED keyboard. Despite the absence of a number block, there are separate dedicated Home, PgUp, PgDn, End and arrow keys on the right side, which greatly facilitates working with large text arrays. Above there are separate PrtSc, Insert, Delete. In general, the ANSI standard is used, the island-type buttons are recessed relative to the level of the case. Pantograph mechanisms (scissors) are installed under the buttons, providing uniform pressing with a total stroke of 1.4 mm. The English and Ukrainian layouts are softly and clearly highlighted in white with three levels of brightness. Caps Lock indicators, microphone activity and camera activity are built into the corresponding buttons. Also noteworthy is the start button, with a built-in fingerprint scanner in the upper right corner.

The sensitive touchpad measures 130×75 mm. Its surface is matte and slippery to the touch. Mechanical keys are hidden under the left and right bottom corners. It supports recognition of four fingers at the same time and a large number of intuitive gestures. If you hold your finger for a second in the upper right corner, ASUS NumberPad technology will turn on and the illuminated outlines of the buttons of the virtual touch numeric pad will appear on the touchpad. The icon in the upper left corner (if you hold your finger on it) allows you to change one of two levels of backlight brightness.

Screen

The best and arguably the most expensive element in the ASUS Zenbook 14 Flip OLED is its touchscreen. It has a 14″ format (302×189 mm), a refresh rate of 90 Hz, and viewing angles of at least 85 degrees on each side. The use of OLED technology fully compensates for the glossy finish of the display with high brightness. Everything that is displayed on the monitor is visible in any light, from all sides at all angles and without color distortion. The screen is Pantone certified for color accuracy and TUVRheinland certified for low levels of harmful blue light.

Inside, there is a Samsung ATNA40YK04-0 matrix with a resolution of 2880×1800 pixels and an aspect ratio of 16:10. The response speed of the matrix is 0.2 ms. Supports stylus and simultaneous recognition of 10 finger touches.

According to our measurements, the screen provides coverage of the sRGB color space at 100%, Adobe RGB 95.5% and DCI P3 99%. This is enough to work with design and color. Otherwise, additional calibration can be carried out.

Brightness is adjustable from 3 to 343 cd/m² (according to our measurements). The contrast ratio could not be set instrumentally (the device gave out the value of infinity), so we have to take it on faith that it reaches 1,000,000:1. All subsequent measurements were made at a brightness of 120 cd/m².

The color temperature is consistently around 6600K at all brightness levels. The deviation of the gamma curves is insignificant.

The screen provides near-perfectly accurate color reproduction, with an average DeltaE deviation well below unity in all colors except for a few dark tones.

The ASUS Zenbook 14 Flip OLED screen is simply gorgeous. But remember that OLED technology has several features, such as color fading over time. Yes, usually the warranty is 7000 working hours (at brightness up to 200 cd / m²), and to extend the life of the matrix, here you can see such long-forgotten things as a color splash screen after 5 minutes of inactivity, a dark Windows theme for customization, and Samsung’s built-in technology, which will automatically compensate for the burn-in of certain points by increasing their brightness.

Internal structure

On the back of the bottom panel there are plastic elements to increase rigidity and several soft and thermal pads.

The 63 Wh battery is located in the front of the case, in the area under the palms. Two acoustic speakers are equipped on the sides of it, and wireless antennas are built into the front left and right. The motherboard and everything else is in the area under the keyboard.

A 1 TB Samsung PM9A1 (MZVL21T0HCLR-00B00) NVMe drive with a capacity of 1 TB and 2280 format is hidden under the overlay in the center. There is no free space and slots for installing additional drives. The RAM is soldered on the board.

The cooling system consists of two centrifugal fans with radiators on the sides. They are connected to the processor built in the center by one separate heat pipe each. They work in three modes of operation – quiet, standard and efficient. In the first two, the operation of the fans is not audible at all. In the latter, they create noticeable noise under full load.

The Willow Cove architecture Intel Core i7-1165G7 Power Efficient Mobile Processor from the Tiger Lake-U family has four physical cores with Hyper-Threading to process eight data streams. With a base frequency of 2.8 GHz, the maximum boost frequency can reach 4.7 GHz (when only one core is loaded).

Built-in 16 GB LPDDR4 memory operates in multi-channel mode at a frequency of 4266 MHz with delays of 36-39-39-90-1T. The OEM of the manufacturer and the exact marking of the chips could not be established.

The laptop relies on the built-in Intel Iris Xe Graphics for image processing and display.

By and large, the average user has nothing to do inside this device. It will not work to increase the amount of memory, replacing a standard drive also does not make much sense, and all work on cleaning the cooling system or replacing the battery is best done in specialized services.

Software

ASUS Zenbook 14 Flip OLED runs Windows 11 Home operating system.

The MyASUS program allows you to configure all the necessary device settings. In particular, battery consumption mode, hardware performance and fan mode, screen image quality, audio system, microphone, wireless connection and much more.

Cooling efficiency and noise level

The laptop cooling system is closely related to the operating mode and heat dissipation of the central processor. The value is played by whether the device is powered by an outlet or by battery. Only in the first case, the processor is fully revealed. It is clear that in the “quiet” and “balanced” version, the power of the device is limited, and the fan works quietly. Therefore, we are interested in the scenario of maximum efficiency with the power supply connected. In it, at the beginning of loading, the frequencies instantly jump to 4.7 GHz, the processor warms up to 100 degrees and 27% throttling begins. A couple of tens of seconds after the fans reach their maximum speed, the frequencies decrease and stabilize at 3.2 GHz across all cores. The cooling system keeps 86 degrees on the CPU while running at a high noise level. Exhaust temperatures reach 45 degrees from both radiators. The laptop was tested in the AIDA64 stress test at an ambient temperature of 22.5 degrees Celsius.

The case stays mostly cool, with the exception of the central upper area where the keyboard reaches 38 degrees, which feels like barely noticeable warmth. At the table, this device will feel comfortable to the touch even during heavy computing.

Test results

Overall Performance

PCMark 10
The graph shows the overall result of the extended test and the results of individual groups of tests as part of this benchmark.

CPU-Z Benchmark

Cinebench

Geekbench 5

V-Ray 5 Benchmark

AIDA Cache & Memory Benchmark

Disk Subsystem

Game programs

ASUS Zenbook 14 Flip OLED is not designed for gaming at all, since the integrated Intel Iris Xe Graphics GPU is not designed for “gamers” and providing comfortable fps in complex 3D graphics. Therefore, we limited ourselves to synthetic tests so that potential buyers have a rough idea of the capabilities of this system. Of course, if you want, you can play simple projects at low or medium settings.

3DMark

Battery life

To verify battery life, several tests were carried out using specialized PCMark benchmarks. The Modern Office test simulates a combined office workload. The Video test measures the operating time when playing Full HD video. The screen brightness is set to maximum. The keyboard backlight is on full. The average balanced battery usage mode is set.

The laptop has a more than adequate level of autonomy, which can be increased by lowering the screen brightness and some energy-saving technologies. The manufacturer also took care of extending battery life, so in the MyASUS application settings you can limit the maximum battery level to 80% or even 60% in case the device is constantly connected to the mains.

Output

ASUS Zenbook 14 Flip OLED is a perfectly balanced laptop for everyday and business use. The device features a powerful processor that can be power efficient when needed, combined with a fast memory configuration. And here is a voluminous and very fast SSD drive. Under load, a good cooling system helps the processor to fully open up. And the battery provides the device with a sufficient level of autonomy. Of the pleasant features, it should be noted that the keyboard is convenient for working with texts with a clear backlight, a touchpad with a numeric keypad function, fast Wi-Fi, good acoustics and a carrying case included. Plus a two year manufacturer’s warranty.

The ASUS Zenbook 14 Flip OLED features an excellent OLED touch screen and tablet mode for professional 2D graphics work. And for those who just love to draw, or are a real artist, this is an indispensable tool, since there is also a stylus in the kit.

FAQ Asus Zenbook 14 Flip Oled 2023

What makes the Asus Zenbook Flip 14 OLED stand out in the 2-in-1 laptop market?

The Asus Zenbook Flip 14 OLED stands out due to its stunning 2.8K OLED display, offering vibrant colors, deep blacks, and a 90Hz refresh rate, combined with a sleek convertible design that offers versatility in usage.

How does the OLED panel on the Asus Zenbook Flip 14 OLED compare to other 14-inch OLED displays in terms of peak brightness?

The OLED panel on the Asus Zenbook Flip 14 OLED offers impressive peak brightness levels, often surpassing many other 14-inch OLED displays, with the capability to reach a high nit value that ensures clarity even in bright environments.

Between the Asus Zenbook S 13 Flip and the Dell XPS 13, which offers a better 2-in-1 convertible experience?

While both laptops have their merits, the Asus Zenbook S 13 Flip often edges out the Dell XPS 13 due to its robust performance mode, inclusion of the Asus Pen 2.0 for enhanced creativity, and a slightly more compact chassis, making it a favored 2-in-1 convertible for many.

What are the key enhancements in the Asus Zenbook 14 OLED compared to previous Zenbook models?

The Asus Zenbook 14 OLED boasts a 2.8K OLED display with DCI-P3 color gamut, ensuring vivid and true-to-life visuals. Additionally, it offers a 90Hz refresh rate for smoother animations and transitions, and the performance mode provides a boost in productivity tasks compared to previous Zenbook models.

How does the 2.8K OLED display on the Zenbook 14 Flip OLED UP3404 enhance the gaming experience compared to traditional displays?

The 2.8K OLED display offers richer colors, deeper blacks, and a 90Hz refresh rate, making games appear more vibrant and fluid. The higher resolution and OLED technology also ensure better contrast and clarity, providing an immersive gaming experience.

With the 13th generation Intel processors, how does the performance of the Zenbook Flip OLED’s compare to other 2-in-1 convertibles?

Equipped with the 13th gen Intel processors, the Zenbook Flip OLED’s performance is top-notch, enabling faster multitasking, efficient processing, and smooth graphics rendering, often outpacing many other 2-in-1 convertibles in the market.

How has the chassis design evolved in the Asus Zenbook Flip 14 OLED compared to the previous Zenbook models?

The chassis of the Asus Zenbook Flip 14 OLED is designed to be more streamlined, compact, and portable while maintaining robustness. Its convertible nature combined with a sleek and modern aesthetic sets it apart from previous Zenbook models.

Why is the Asus Zenbook S 13 Flip considered a fantastic OLED Windows laptop?

The Asus Zenbook S 13 Flip offers a brilliant OLED display, ensuring sharp visuals, vibrant colors, and deep blacks. Coupled with its 2-in-1 convertible design, powerful performance mode, and the versatility of the Asus Pen 2.0, it’s considered one of the top OLED Windows laptops available.

Does the Asus Zenbook Flip 14 OLED come with any specialized software or features for content creators?

Yes, the Asus Zenbook Flip 14 OLED comes with the Asus Pen 2.0, which is perfect for content creators. The laptop is also optimized for color accuracy with its OLED panel, catering to the needs of graphic designers and video editors.

How does the Zenbook 14 Flip’s OLED also improve the multimedia experience compared to regular LED screens?

The Zenbook 14 Flip’s OLED also enhances the multimedia experience by offering deeper blacks, more vibrant colors, and sharper contrasts. This ensures movies, videos, and photos look lifelike, providing a cinematic experience right on the laptop screen.

How does the resolution of 2880 x 1800 on a convertible laptop enhance the user experience compared to standard Full HD resolutions?

The 2880 x 1800 resolution on a convertible laptop offers sharper and more detailed visuals, making it perfect for tasks like photo editing, watching high-definition videos, or graphic design. The increased pixel density provides a crisper image, enhancing the overall user experience.

When comparing the Dell Inspiron 14 and an Asus laptop, which one tends to have a better reputation among tech enthusiasts?

While both brands have their strengths, the Dell Inspiron 14 is often lauded for its reliable performance and build quality. However, Asus laptops, especially models like the Asus’s Zenbook series, are known for their sleek design and innovative features. The choice largely depends on the specific needs and preferences of the user.

How do the features of the review unit of the 14 Flip OLED’s differ from the commercially available models?

The review unit of the 14 Flip OLED’s typically comes with the latest features and specifications to showcase the best the laptop has to offer. However, commercially available models might have variations in specs or features based on regions or specific configurations. It’s always best to compare the exact model specifications when purchasing.

Are there any specific features in the Asus’s Zenbook series that make it stand out as a gaming laptop?

While the Asus’s Zenbook series is primarily designed for productivity and premium user experience, some models come with dedicated graphics and powerful processors, making them suitable for light to moderate gaming. However, for a dedicated gaming experience, one might want to consider specialized gaming laptops from Asus’s ROG (Republic of Gamers) lineup.

Why do many reviewers claim the Flip OLED is great after conducting a full review?

After a full review, many reviewers find that the Flip OLED is great due to its vibrant and color-accurate OLED display, robust performance, sleek convertible design, and long battery life. The combination of these features makes it a top choice among premium convertible laptops.

Given the current trends, why would someone opt for a portable laptop like the Zenbook over larger devices?

A portable laptop like the Zenbook offers the perfect balance between performance and portability. With advancements in technology, even slim and lightweight laptops like the Zenbook also pack powerful processors, ample memory, and fast storage, making them suitable for most tasks while being convenient to carry around.

With the news that Asus is launching a new series of laptops, how does the Flip OLED also adapt to the evolving needs of users?

The Flip OLED also continues to adapt by offering the latest in display technology with its OLED panel, faster performance with the latest processors, and innovative features like a seamless convertible design. Asus ensures that the Zenbook, including the Flip OLED, stays relevant and meets the evolving demands of modern users.
